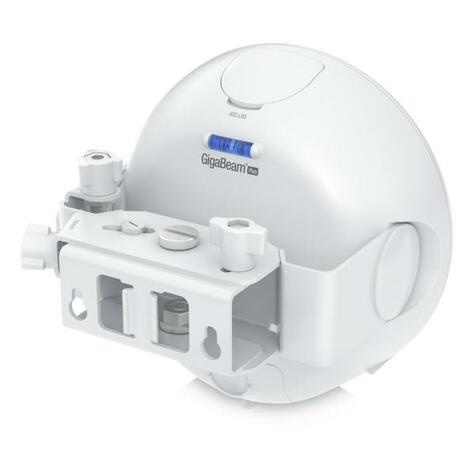

Ubiquiti GigaBeam Plus 60 GHz Radio

206,50

170,66 exkl. MwSt.

Nicht auf Lager

Veilig achteraf betalen via of

Uitverkocht

We sturen je een mailtje als we dit artikel weer op voorraad hebben.

Zur Wunschliste hinzufügen

Vaak samen gekocht.

Op ons kun je rekenen.

Gratis verzending binnen de Benelux
Installatieservice kant-en-klaar of op locatie
Kopen op rekening voor de zakelijke markt
Professioneel advies per telefoon
Altijd minimaal 2 jaar garantie^*
Klantbeoordeling 9,2

airMAX 60 GHz Radio System with True Duplex Gigabit Performance.

GBE-Plus is a 60 GHz Radio capable of supporting 1 Gbps rates with very low latency. GBE-Plus can be used as a high throughput backhaul/edge PTP solution in WISP deployments. Housed in a outdoor industrial design, the GBE-Plus achieves significant gain improvements with an integrated Cassegrain reflector design. The GBE-Plus is easily set-up, configured and managed through the UISP dashboard and UISP Mobile app via Bluetooth.

Features:

Low-Interference 60 GHz Spectrum
35 dBi Antenna Gain with Integrated Reflector
1.5+ Gbps Bidirectional Throughput with Low Latency
Long Range, up to 1.5 km
link.ui.com Planning Support
Quick Setup Using the UISP App via Bluetooth

Specifications

Dimensions	155 x 137 mm
Weight	1kg
Enclosure Materials	UV Resistance Polycarbonate, Stainless Steel
Mount Materials	Metal
Wind Loading	50 N at 200 km/h (11.24 lbf at 125 mph)
Processor	Quad-Core ARM Cortex A7
Memory	256 MB DDR3
Networking Interface	10/100/1000 Mbps Ethernet RJ45
Management Interface	Ethernet In-Band Bluetooth
RF Connections	Internal
Max. Power Consumption	11W
Power Method	Passive PoE (Pairs 4, 5+; 7, 8-)
Power Supply	24VDC, 0.5A Gigabit PoE Adapter 24V, 1A for using Motor Accessory
Supported Voltage Range	22 to 26VDC
ESD/EMP Protection	Air/Contact: +/- 24kV
Operating Temperature	-40 to 60 C
Operating Humidity	5 - 95% Noncondensing
Certifications	FCC, IC, CE

Leds & Software

Power	Flashing White: Bootup in Progress White: Not Connected to Ubiquiti Internet Service Provider (UISP) Blue: Connected to UISP
Ethernet	Flashing Blue: Ethernet Traffic Detected
60GHz	Blue: Active Connection
OS	airOS
Operating Modes	PtP as Access Point or Station
Ubiquiti Specific Features	Integrated 60 GHz Radio, Discovery Protocol
Security	WPA2 AES Only
Dashboard	Yes
Wireless Settings	Yes
Network Settings	Yes
System	Yes
Services	UISP, Ping Watchdog, Web Server, SSH Server, NTP Client, System Log, Device Discovery
Tools	Antenna Alignment Tool, Discovery Utility, Traceroute, Speed Test
Software Management	Bluetooth Management for Easy Setup Over UISP App WEB UI
Minimum Software Requirements	Any Modern Web Browser/iPhone/Android

Operating Frequency	57,000 - 66,000 MHz
Max. Conducted TX Power	17 dBm
Channel Bandwidth	2160 MHz
Operating Channels	58320, 60480, 62640, 64800 MHz
Antenna Gain	35 dBi
Beamwidth	HPOL: NaN (The Antenna is Only Vertically Polarized) VPOL: 3 degrees Elevation: 3 degrees
Management Radio	2400 - 2483.5 MHz
Electrical Downtilt	0 degrees
