DIMENSIONS

CAMERA

• 120-degree FOV

• UHD 2160p (4K) capture resolution

• Automatic people framing & speaker tracking

APPLICATION COMPATIBILITY

Unit dimensions:

105 mm x 700 mm x 70 mm =
4.2” x 27.3” x 2.8” (HxWxD) without stand

156 mm x 700 mm x 70 mm =
6.2” x 27.3” x 2.8” (HxWxD) with stand

Weight:
5 lbs 2.6 oz (2342 g) without stand
6 lbs 4.7 oz (2856 g) with stand

AUDIO

Compatible with any application that supports standard USB audio and video drivers, including but not limited to:

Certified for Microsoft Teams and Skype for Business

Zoom Certified

LogMeIn GoToMeeting®

BlueJeans Network

Google HangoutsTM communication platform

Amazon Chime
Cisco Webex®
VidyoDesktopTM
Polycom RealPresence Desktop

Supported operating systems Windows 7, 8.1, 10
MacOS 10.12, 10.13, 10.14

Support for standard audio and video device drivers

UAC 1.0 Audio UVC 1.1/1.5 Video HID 1.11

SECURITY

• 802.1x support

• Certification management

  MANAGEABILITY (VIA WI-FI)

• Polycom Companion App (running on Win/Mac PC connected to device)

• Polycom RealPresence Resource Manager

• Polycom Device Management Service

  WARRANTY INFORMATION

  • 1-year limited hardware warranty

  COUNTRY OF ORIGIN

  • Laos

  ENVIRONMENTAL

  • Operating temperature: 32–104°F (0–40°C)

  • Relative humidity: 5–95%, noncondensing

  • Storage temperature: -13–160°F (-25°–70°C)

Remote control dimensions:

183 mm x 40 mm x 19 mm = 7.2” x 1.6” x .75” (HxWxD)

Poly Acoustic Clarity technology provides full-duplex conversations, acoustic echo cancellation and background noise suppression

Poly NoiseBlock technology Poly Acoustic Fence technology Mute/unmute controls
Stereo microphones:

6-element beamforming microphone array

12 ft pickup range

120 Hz–16 kHz frequency response Stereo speakers:

100 Hz–20 KHz frequency response Output = 90 dB @ 0.5m

APPLICATION REQUIREMENTS

POWER REQUIREMENTS

• 12VDC/5A @ 100~240VAC, 50/60 Hz

PACKAGE INCLUDES

• Poly Studio

• Remote control with 2 AAA batteries

• Power adapter

• 5 m USB 2.0 cable (Type-C to Type-A)

• Wall mount kit

• Setup sheet

  OPTIONAL ACCESSORIES

• Expansion microphone

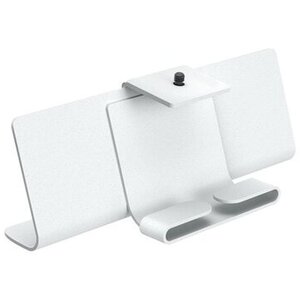

• Display mount

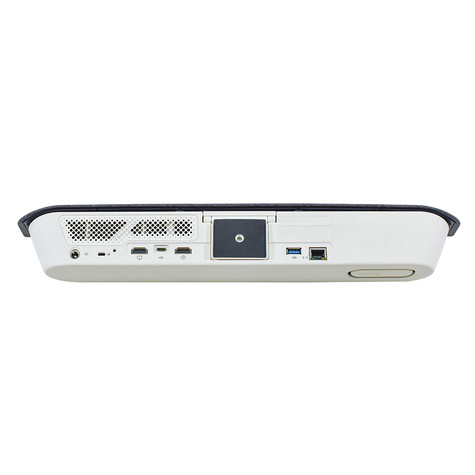

INTERFACES

• 1x USB 3.0 Type-C port (with 2.0 compatibility)

• Power connector
• Optional external microphone • 3.5 mm stereo Audio In
• Kensington security lock

• 802.11ac Wi-Fi wireless networking for manageability; IEEE 802.11a/b/g/n compatible

• Bluetooth® 4.2
