De beoordeling van dit product is
van de 5350,50
289,67 Excl. btw
Veilig achteraf betalen via of
Op een werkdag voor 17:00 besteld, morgen in huis!

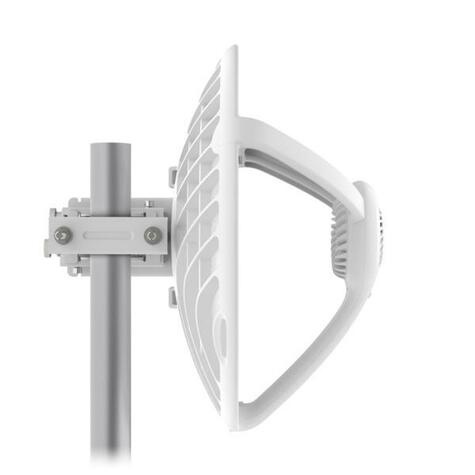

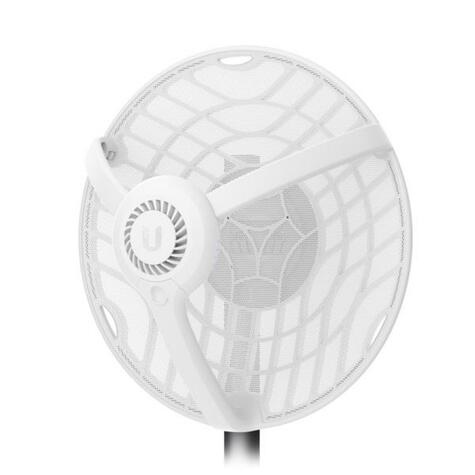

Toevoegen aan winkelwagen Aan verlanglijst toevoegenairFiber 60 GHz Radio System Featuring Wave Technology with True Duplex Gigabit Performance for PtP Links over 12 km Distances AF60 LR is a 60GHz radio designed for high-throughput connectivity over an extended range. The airFiber 60 LRfeatures the integrated high-gain dish antenna for high speed, long-range performance Point-to-Point (PtP) links. New WaveTechnology enables incredible long-range performance within the 60GHz spectrum.
Includes a built-in Bluetooth management radio for easy setup.
Specifications
Dimensions | diameter 413 x 360 mm |
Weight | Without Mount: 1.5 kg With Mount: 2.7 kg |
Enclosure Characteristics | Aluminum / UV Stabilized Polycarbonate |
Processor | Quad-Core ARM Cortex A7 |
Memory | 256 MB DDR3 |
Networking Interface | 10/100/1000 Mbps RJ45 Ethernet |
RF Connections | Internal |
Max. Power Consumption | 18W |
Power Method | Passive PoE (Pairs 4, 5+; 7, 8-) |
Power Supply | 48VDC, 0.65A Gigabit PoE Adapter |
Supported Voltage Range | 48VDC +/- 10% |
ESD/EMP Protection | Air/Contact: +/- 24kV |
Operating Temperature | -40 to 60 C |
Operating Humidity | 5 to 95% Noncondensing |
Certifications | FCC, IC, CE |
Leds & System
Power | Flashing White: Bootup in Progress White: Not Connected to Ubiquiti Network Management System (UISP) Blue: Connected to UISP |
Ethernet | Flashing Blue: Ethernet Trafic Detected |
GPS | Blue: Receiving at Least (4) GPS Satellite Signals |
60G | Blue: Active Connection |
Maximum Throughput | 1.8 Gbps |
Maximum Range | 12 km |
Encryption | WPA2-PSK (AES) |
Software & RF
OS | airOS |
Modes | PtP Only |
Services | UISP, Ping Watchdog, NTP Client, System Log |
Utilities | Antenna Alignment Tool, Discovery Utility, Ping, Traceroute, Speed Test |
Network | Bridge Mode |
Management interface | Bluetooth management for easy setup over UISP App WEB UI |
Minimum Software Requirements | Modern Web Browser or Android/iOS Smartphone |
Technology | Wave |
Operating Frequency | 57 to 71 Ghz (Depends on regulatory region.) |
GPS | Yes |
Channel Bandwidth | 2160, 1080 Mhz |
Let op: dit is een ‘hoog vermogen’ router. Deze router voldoet niet aan de eisen voor vergunningsvrij gebruik; de router kan gebruikt worden op frequenties die in Nederland illegaal zijn. We adviseren u om deze router te gebruiken binnen de legale frequenties (op 2,4 GHz maximaal 100mW en op 5GHz maximaal 200 mW). Op deze manier houden we het internet in Nederland vlot en zonder storingen.
