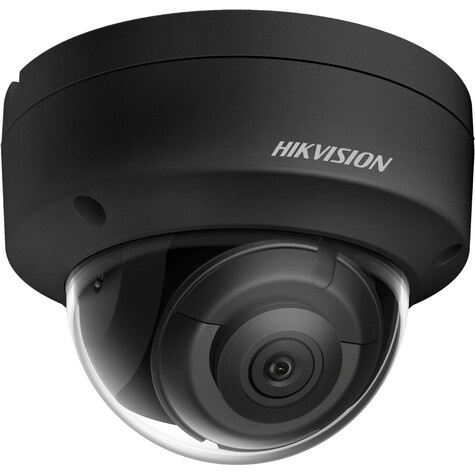

Hikvision DS-2CD2183G2-IS(2.8mm)(BLACK) Dome 4K Easy IP 2.0

Hikvision DS-2CD2183G2-IS(2.8mm)(BLACK) Dome 4K Easy IP 2.0

338,-

279,34 Excl. btw

op voorraad

Veilig achteraf betalen via of

Op een werkdag voor 12:00 besteld, morgen in huis!

Toevoegen aan winkelwagen Aan verlanglijst toevoegen

Op ons kun je rekenen.

  • Gratis verzending binnen de Benelux
  • Installatieservice kant-en-klaar of op locatie
  • Kopen op rekening voor de zakelijke markt
  • Professioneel advies per telefoon
  • Altijd minimaal 2 jaar garantie*
  • Klantbeoordeling 9,2

Productinformatie.

Features

  • High quality imaging with 8 MP resolution
  • Clear imaging against strong backlight due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • -S: Audio and alarm interface available
  • Water and dust resistant (IP67) and vandal-resistant (IK10)

Specifications

Camera

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Slow Shutter: Yes
  • P/N: P/N
  • Wide Dynamic Range: 120 dB
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

  • Lens Type: Fixed focal length, 2.8 and 4 mm optional
  • Focal Length & FOV: 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F1.6

DORI

  • DORI: 2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m

Illuminator

  • Supplement Light Type: IR
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • IR Range: Up to 30 m

Video

  • Max. Resolution: 3840 × 2160
  • Main Stream:
    • 50 Hz: 20 fps (3840 × 2160)
    • 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    • 60 Hz: 20 fps (3840 × 2160)
    • 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub Stream:
    • 50 Hz: 25 fps (640 × 480, 640 × 360)
    • 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream:
    • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • *Third stream is supported under certain settings.
  • Video Compression:
    • Main stream: H.265/H.264/H.264+/H.265+
    • Sub-stream: H.265/H.264/MJPEG
    • Third stream: H.265/H.264
    • *Third stream is supported under certain settings.
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • H.264+: Main stream supports
  • H.265+: Main stream supports
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region Of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

  • Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate-S: 64 Kbps (G.711ulaw/G.711alaw)/
    16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
  • Audio Sampling Rate-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering-S: Yes

Network

  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter,
    Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser:
    • Plug-in required live view: IE 10, IE 11
    • Plug-in free live view : Chrome 57.0+, Firefox 52.0+
    • Local service: Chrome 57.0+, Firefox 52.0+


  • Image Parameters Switch: Yes
  • Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Image Enhancement: BLC, HLC, 3D DNR
  • SNR: ? 52 dB

Interface

  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Audio-S: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 K?, interface type: non-equilibrium;
    1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium,mono sound
  • Alarm-S: 1 input, 1 output (max. 12 VDC, 30 mA)
  • Hardware Reset: Yes

Event

  • Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Face Detection: Yes

Deep Learning Function

  • Perimeter Protection:
    • Line crossing detection, intrusion detection
    • Supports human and vehicle targets classification

General

  • Linkage Method: Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
  • Camera Material:
    • Aluminum alloy body
    • Bubble: plastic
  • Camera Dimension: Ø110.8 mm × 84.7 mm (Ø4.4" × 3.3")
  • Package Dimension: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
  • Camera Weight: Approx. 520 g (1.1 lb.)
  • With Package Weight: Approx. 720 g (1.6 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Web Client Language:
    • 33 languages
    • English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French,
      Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish,
      Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, password reset via email, pixel counter
  • Firmware Version: V5.5.113
  • Software Reset: Yes
  • Power Consumption And Current:
    • 12 VDC, 0.5 A, max. 6 W
    • PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W
  • Power Supply:
    • 12 VDC ± 25%, reverse polarity protection
    • PoE: 802.3af, Class 3
  • Power Interface: Ø5.5 mm coaxial power plug
