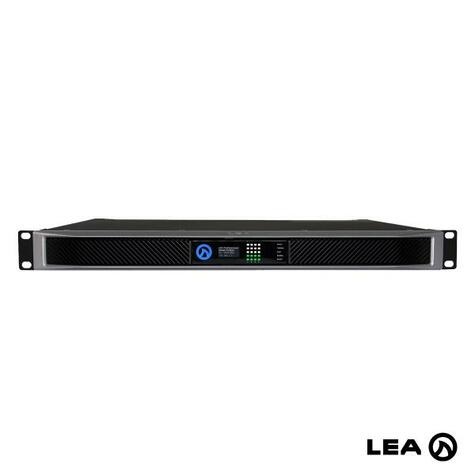

Soundvision LEA Connect Series 352, 2-Channel, 350w, 70v/100v Amplifier, 1U.

2.606,50

2.154,13 Excl. btw

2× op voorraad

Veilig achteraf betalen via of

Op een werkdag voor 17:00 besteld, morgen in huis!

Toevoegen aan winkelwagen Aan verlanglijst toevoegen

Add real-time monitoring into service contracts - Amplifiers can tell when preventative maintenance is required before a failure actually occurs. - Ability to do remote troubleshooting without having to put someone on a truck. - Know what components

Vaak samen gekocht.

Op ons kun je rekenen.

Gratis verzending binnen de Benelux
Installatieservice kant-en-klaar of op locatie
Kopen op rekening voor de zakelijke markt
Professioneel advies per telefoon
Altijd minimaal 2 jaar garantie^*
Klantbeoordeling 9,2

Output Power (20Hz to 20kHz)	2 x 350 WRMS @ 4Ohm, 8Ohm, 70V, 100V (175W at 2Ohm)
Inputs	Balanced analog Inputs with user selectable 26 dB and 34 dB input sensitivity
THD+N	0.1% (20Hz to 20kHz)
Frequency Response	+/- 0.5 dB @ 4Ohm, 8Ohm, 70V, 100V, -2.5dB @ 20kHz at 2Ohm
Signal to Noise Level	105dB (20Hz to 20kHz referenced to 8Ohm)
Crosstalk	70dB (20Hz to 20kHz)
I/O Latency	1 ms DSP latency under any condition
Load Impedance	LowZ down to 2 ohms, 70V direct, and 100V Direct per channel
Amplifier Output Classification	Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
DC Offset	+/- 3mV
DSP Architecture	Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
Input Matrix	Routable matrix; any input to any output with primary and secondary input priority
Crossovers	Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
Parametric EQ	8 Band Parametric EQ per channel
Output Delay	100ms per channel
Output Protection	DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
User Adjustable Limiting	Peak Voltage and RMS Voltage
Load Monitoring	Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
Network Connectivity	WiFi or 100MB Ethernet with PoE or Built in WiFi Access Point (IEEE 802.11b/g/n WPA, WAP2, WEP) Operating Frequency: 2412 - 2472MHz ; Channel Spacing:5Mhz ; Modulation: DSSS, OFDM
User Interface	Web Browser User Interface or 3rd Party API control (Q-Sys coming soon)
Supported Operating Systems	MAC, iOS, PC, Android
Event Reporting	User Downloadable and Viewable Event and Fault log - POE allows for enhanced error monitoring
External I/O	External I/O In: Toggles Remote On/Off, External I/O Out: Indicates Amplifier Health
Cloud IoT	Cloud-based IoT functionality
AC Mains	100VAC - 240VAC +/- 15% 50Hz or 60Hz
Temperature	Storage: -20C to 90C - Operating: 0C to 60 C
Power Supply	Universal Switch Mode Power Supply with Power Factor Correction (No PFC in 84, 164, 88, & 168)
Safety Approvals	UL, CSA,CE, ETL, FCC, CCC, KETI, NOM , ROHS, PSE
Dimensions (L x W x H)	14.25inch x 19inch x 1U (362mm x 482mm x 1U)
Cooling	Front to Rear Variable Fan Speed Cooling, Fan Noise at idel is 50dB @ 1m, Fan Noise at 50% is 57dB @1m, Fan Noise at full speed is 63dB @ 1m
Connectors	Analog Input: 3 pin Amphenol Anytek, Output: 2 pin Amphenol Anytek, External IO: 3 pin Amphenol Anytek, Power in: IEC, Ethernet RJ45 In for Control ***Note: 84, 164, 8, & 168 do not have potentiometers on the rear panel
