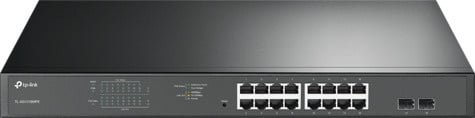

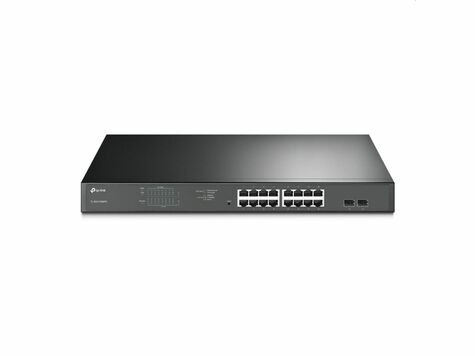

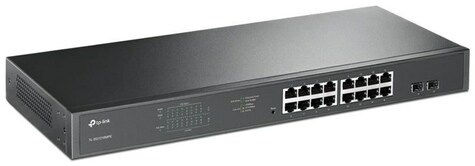

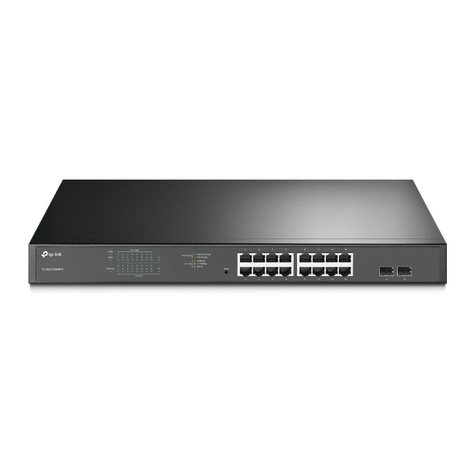

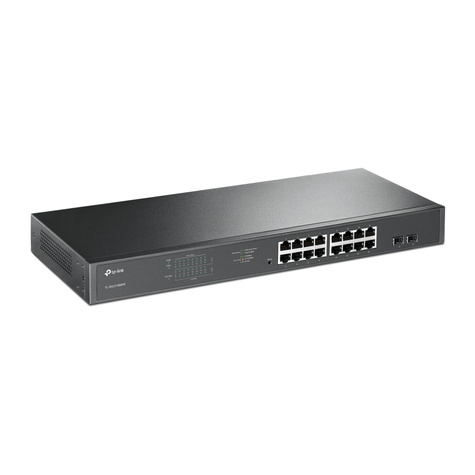

TP-Link TL-SG1218MPE

191,25

158,06 Excl. btw

10+ op voorraad

Veilig achteraf betalen via of

Op een werkdag voor 21:30 besteld, morgen in huis!

Toevoegen aan winkelwagen Aan verlanglijst toevoegen

16 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems Port Priority is able to guarantee the quality of sensitive application like video monitor Int

Vaak samen gekocht.

Op ons kun je rekenen.

Gratis verzending binnen de Benelux
Installatieservice kant-en-klaar of op locatie
Kopen op rekening voor de zakelijke markt
Professioneel advies per telefoon
Altijd minimaal 2 jaar garantie^*
Klantbeoordeling 9,2

Standards and Protocols:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface:
     16 10/100/1000 Mbps RJ45 Ports
     (Auto Negotiation/Auto MDI/MDIX)
     2 Gigabit SFP Ports

Network Media:
     10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
     EIA/TIA-568 100Ω STP (maximum 100m)
     100BASE-TX: UTP category 5, 5e cable (maximum 100m)
     EIA/TIA-568 100Ω STP (maximum 100m)
     1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
     EIA/TIA-568 100Ω STP (maximum 100m)
     1000BASE-X MMF, SMF

Fan Quantity: 2 Fans
Physical Security Lock: Yes
Power Supply: 100-240V AC, 50/60 Hz

PoE+ Ports(RJ45):
     Standard: 802.3at/802.3af compliant
     PoE+ Ports: 16 Ports
     Power Supply: 192W

Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Mounting: Rack Mountable

Max Power Consumption:
18.73 W (220/50Hz. no PD connected)
217.22 W (220/50Hz. with 192W PD connected)

Max Heat Dissipation:
63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192W PD connected)

PERFORMANCE
Switching Capacity: 36 Gbps
Packet Forwarding Rate: 23.8 Mbps
MAC Address Table: 8K
Packet Buffer Memory: 4.1 Mbit
Jumbo Frame: 9 KB

SOFTWARE FEATURES
Quality of Service:
     Support Port-based 802.1p/DSCP priority
     Support 4 priority queues
     Rate Limit
     Storm Control

L2 Features:
     IGMP Snooping V1/V2/V3
     Static Link Aggregation
     Port Mirroring
     Cable Diagnostics
     Loop Prevention

VLAN:
Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Management:
Web-based GUI
Easy Smart Configuration Utility

Transmission Method: Store-And-Forward

OTHERS
Certification: CE, FCC, RoHS

Package Contents:
     TL-SG1218MPE
     Power Cord
     Installation Guide
     Resource CD
     Rackmount Kit
     Rubber Feet

Environment:
     Operating Temperature: 0°C~50°C (32°F~122°F)
     Storage Temperature: -40°C~70°C (-40°F~158°F)
     Operating Humidity: 10% ~ 90% non-condensing
     Storage Humidity: 5%~90% non-condensing
