Ubiquiti UniFi Access Starter Kit

585,50

483,88 Excl. btw

Niet op voorraad

Veilig achteraf betalen via of

Uitverkocht

We sturen je een mailtje als we dit artikel weer op voorraad hebben.

Maak een keuze:

Aan verlanglijst toevoegen

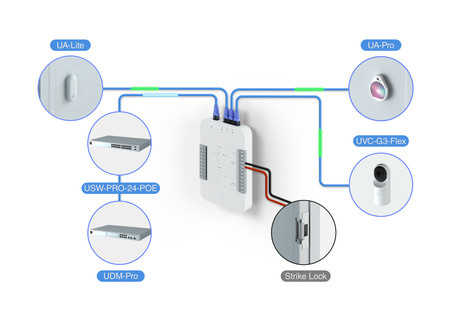

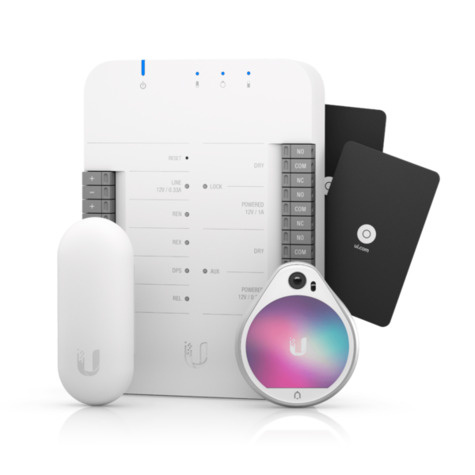

Comprehensive starter kit with everything you need to set up a premium UniFi Access solution. UniFi Access Starter Kit contains everything you need to set up the next generation, state-of-the-art access control system for your business. Compatible with

Vaak samen gekocht.

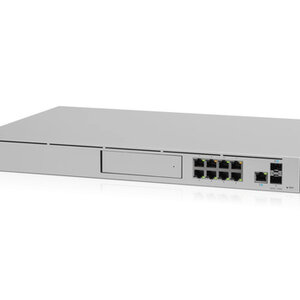

UniFi Dream Machine Pro - UDM-PRO

426,00

Toevoegen aan winkelwagen
UniFi Dream Machine - UDM

369,00

Op ons kun je rekenen.

Gratis verzending binnen de Benelux
Installatieservice kant-en-klaar of op locatie
Kopen op rekening voor de zakelijke markt
Professioneel advies per telefoon
Altijd minimaal 2 jaar garantie^*
Klantbeoordeling 9,2

Let op: De UniFi Acces Software vereist integratie met een UCK-G2-PLUS of een UDM-PRO

Premium NFC and Bluetooth reader
802.3af PoE powered by UniFi Access Hub
High resolution touchscreen and integrated camera
Advanced NFC credentials, including MIFARE DESFire
Built-in security element chip
For the best NFC security, use with our UA-Card
Mobile access with app (future software release)
Intercom call functionality to request entry (future software release)

Note: UniFi Dream Machine Pro is required to run UniFi Access (NOT included and sold separately!)


Dimensions	190 x 126 x 33 mm (7.48 x 4.96 x 1.29")
Weight	457 g (16.12 oz)
Enclosure Characteristics	Plastic Enclosure with Metal Mount Plate
Mounting Options	DIN Rail
Networking Interface	(4) 1 Gbps Ethernet
Max. Power Consumption	40W
Power Method	802.3bt PoE
Input Relays	REX - Request to Exit REN - Request to Enter REL - Remote Release DPS - Door Position Sensor
Dry Output Relay Lock Aux	Rated 30VDC, up to 1A Rated 30VDC, up to 1A
Powered Output Relay Lock Aux Line	12VDC, up to 1A 12VDC, up to 0.33A 12VDC, up to 0.33A
LEDs	(1) System, (3) PoE Out, (4) Input (2) Output Relays, (1) 12VDC Out
Buttons	Terminal Blocks, Reset
Operating Temperature	0 to 40° C (32 to 104° F)
Operating Humidity	5 - 90% Noncondensing
Certifications	CE, FCC, IC

Recommended Wiring for Typical Installation (Shielded)
DC Power Input	Belden 8750, 18 AWG, 2 Conductor (30.5 m / 100 ft)
Door Position Switch	Belden 8750, 18 AWG, 2 Conductor (152.5 m / 500 ft)
Request to Exit	Belden 8750, 18 AWG (up to 152.5 m / 500 ft)
Lock Relay Output	Belden 8750, 18 AWG (up to 152.5 m / 500 ft)
Auxiliary Relay Output	Belden 8750, 18 AWG (up to 152.5 m / 500 ft)

Wiring Gauge Requirements (AWG)*
Total Length to Device	Output Load Current @ 12VDC
100mA	250mA	500mA	1A
6.1 m (20 ft)	22	22	22	18
15.2 m (50 ft)	22	22	22	18
30.5 m (100 ft)	22	22	18	18

Default I/O State Matrix: Lock
Dry
	NO	COM	NC
Door Locked Initial State	Opened	Shorted	Shorted
Unlocked REN, REX, or REL is shorted; or the reader has granted access	Shorted	Shorted	Opened
Powered
	NO	COM	NC
Door Locked Initial State	0V	GND	+12V
Unlocked REN, REX, or REL is shorted; or the reader has granted access	+12V	GND	0V

Default I/O State Matrix: Aux
Dry1
	NO	COM	NC
Door Locked Initial State	Opened	Shorted	Shorted
Unlocked REN, REX, or REL is shorted; or the reader has granted access	Shorted	Shorted	Opened
Powered2
	NO	COM	NC
Door Locked Initial State	+12V	GND	0V
Unlocked REN, REX, or REL is shorted; or the reader has granted access	0V	GND	+12V

UA-Pro
Dimensions	73.40 x 62.28 x 26.55 mm (2.89 x 2.45 x 1.05")
Weight	85 g (2.99 oz)
Mounting Options	Wall-Mount or Alloy Clamp Holder
Networking Interface	10/100 Mbps Ethernet
Camera Viewing Angle	147.5° ± 3°
Max. Power Consumption	8.3W
Power Method	802.3af PoE
Button	(1) Reset
IP Rating	IP54
LEDs	Blue, White
Connectivity	Ethernet, BLE 4.2
Operating Temperature	-10 to 40° C (14 to 104° F)
Operating Humidity	5 to 90% Noncondensing
Certifications	CE, FCC, IC

NFC
Frequency	13.56 MHz
Read Range	<30 mm
Standards	ISO 14443A, 14443B, 15693
Technology	NFC Tag 1, 2, 3, 4, 5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire EV1/EV2

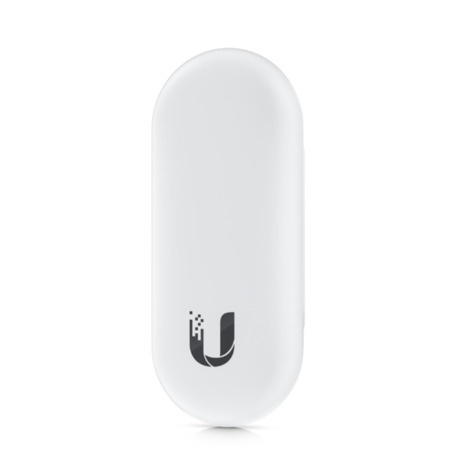

UA-Lite
Dimensions	94.91 x 40.00 x 31.10 mm (3.74 x 1.57 x 1.22")
Weight	65 g (2.29 oz)
Mounting Options	Wall-Mount
Networking Interface	10/100 Mbps Ethernet
Max. Power Consumption	6W
Power Method	802.3af PoE
IP Rating	IP54
Button	(1) Reset
LEDs	White/Blue
Connectivity	Ethernet, BLE 4.1
Operating Temperature	-40 to 40° C (-40 to 104° F)
Operating Humidity	5 to 90% Noncondensing
Certifications	CE, FCC, IC

NFC
Frequency	13.56 MHz
Read Range	<30 mm
Standards	ISO 14443A, 14443B, 15693
Technology	NFC Tag 1, 2, 3, 4, 5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire EV1/EV2
