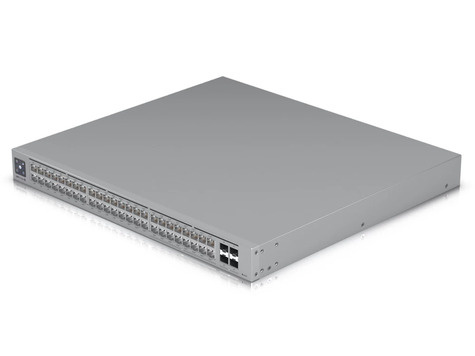

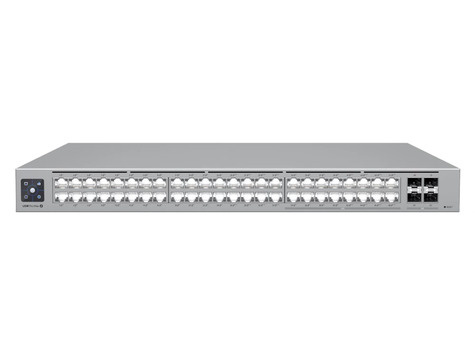

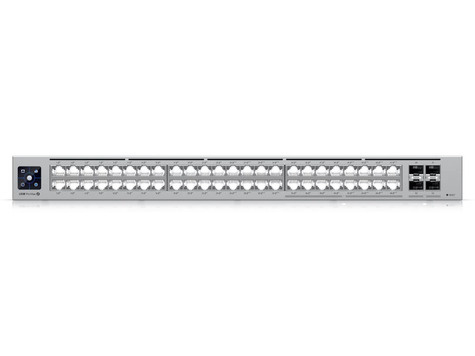

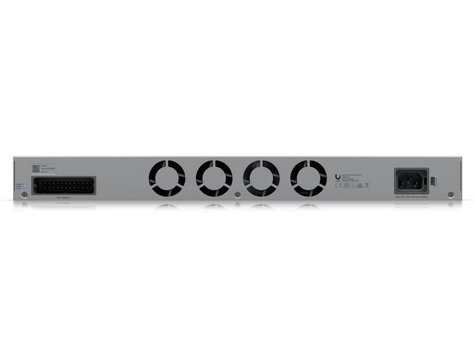

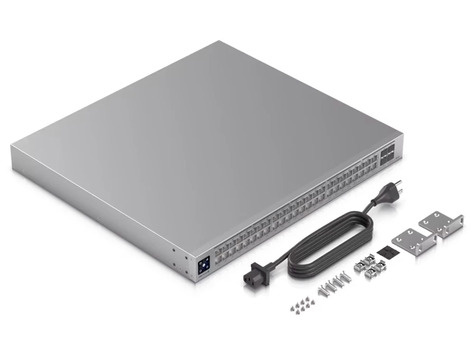

Ubiquiti UniFi Pro Max 48 PoE 720w

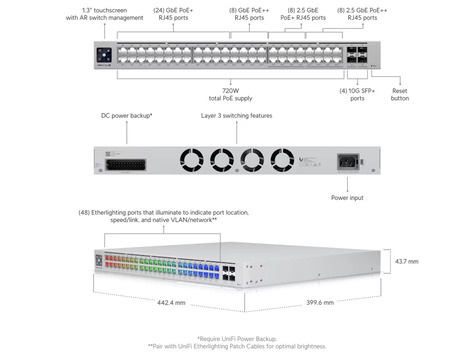

A 48-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.

-Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

-(16) 2.5 GbE ports including (8) PoE+ and (8) PoE++

-(32) GbE ports including (24) PoE+ and (8) PoE++

-(4) 10G SFP+ ports

-DC power backup ready

-720W total PoE availability

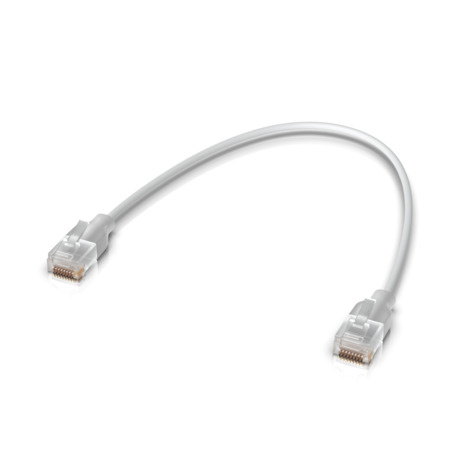

*Pair with UniFi Etherlighting Patch Cables for optimal brightness.

Mechanical:

Dimensions	442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7")
Weight	Without mounting brackets: 6.2 kg (13.7 lb)
	With mounting brackets: 6.3 kg (13.9 lb)
Enclosure material	SGCC steel

Hardware:

Management interface	Ethernet In-Band
Networking interface:	(32) GbE RJ45 ports
	(16) 1/2.5 GbE RJ45 ports
	(4) 10G SFP+ ports
PoE interface:	(32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
	(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput	112 Gbps
Switching capacity	224 Gbps
Forwarding rate	166.656 Mpps
Power method:	(1) Universal input, 100—240V AC, 50/60 Hz
	(1) USP-RPS DC input
Power supply	AC/DC, internal, 820W
Supported voltage range	100—240V AC
Max. power consumption	100W (Excluding PoE output)
Total available PoE	720W
Max. PoE wattage per port by PSE:	PoE: 15.4W
	PoE+: 30W
	PoE++: 60W
Voltage range PoE mode:	PoE: 44—57V
	PoE+: 50—57V
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
