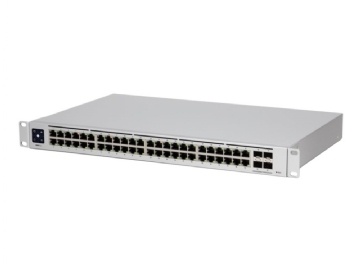

Ubiquiti Unifi Switch USW-Pro-48

UniFi Switch Pro 48 is a fully managed Layer 3 switch with (48) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.

The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution â€“ it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Mechanical:

Dimensions	442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Weight	Without mounting brackets: 4 kg (8.8 lb)
	With mounting brackets: 4.1 kg (9 lb)
Enclosure material	SGCC steel

Hardware:

Management interface	Ethernet In-Band
Networking interface	(48) GbE RJ45 ports
	(4) 1/10G SFP+ ports
Total non-blocking throughput	88 Gbps
Switching capacity	176 Gbps
Forwarding rate	130.944 Mpps
Power method	(1) Universal input, 100—240V AC, 50/60 Hz
	(1) USP-RPS DC input, 11.5V DC, 5.22A
Power supply	AC/DC, internal, 60W
Supported voltage range	100—240V AC
Max. power consumption	60W
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Shock and vibration	ETSI300-019-1.4 Standard
Ambient operating temperature	-5 to 45° C (23 to 113° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC

Switching Features:

Layer 2 features	IGMP snooping
	STP / RSTP with priorities and port-level disable
	Port isolation
	Storm control
	Voice VLAN
	Port mirroring
	LACP port aggregation
	Multicast / broadcast rate limiting
	MAC address blocking
	Flow control
	802.1X control
	Jumbo frames
	Proprietary loop protection
	DHCP snooping / guarding
	Egress rate limit
	LLDP-MED
	Port restricted by MAC
	Device isolation with ACLs
Layer 3 features	DHCP for locally-managed networks
	DHCP relay
	Inter-VLAN routing between networks on same switch
	Static routing between local networks
	Network isolation with ACLs
